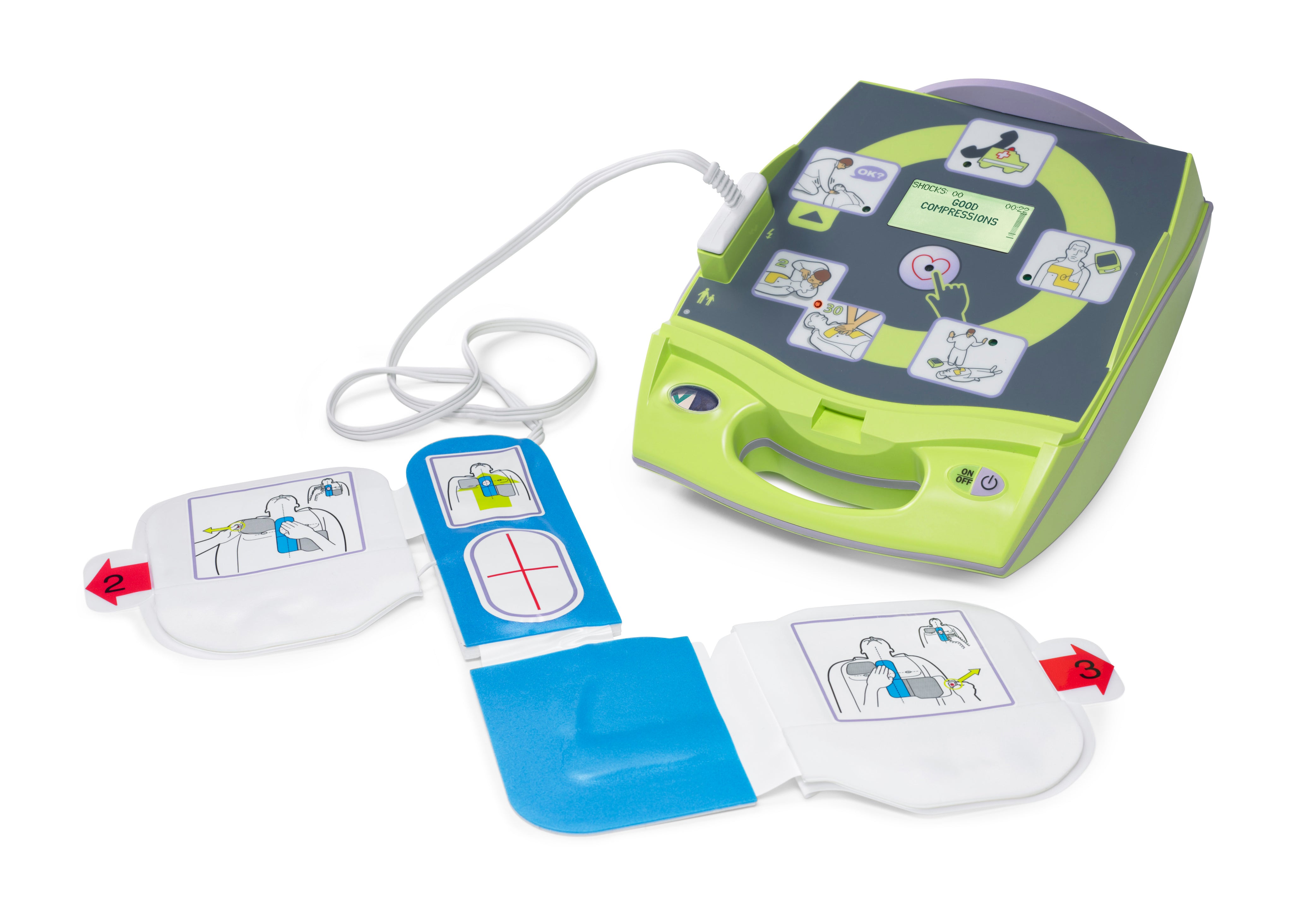

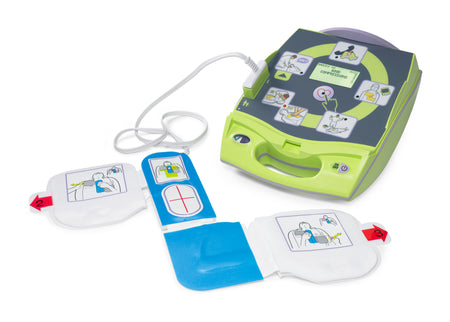

ZOLL AED Plus with open lid and ZOLL CPR D Padz
ZOLL AED Plus CPR Good Compressions

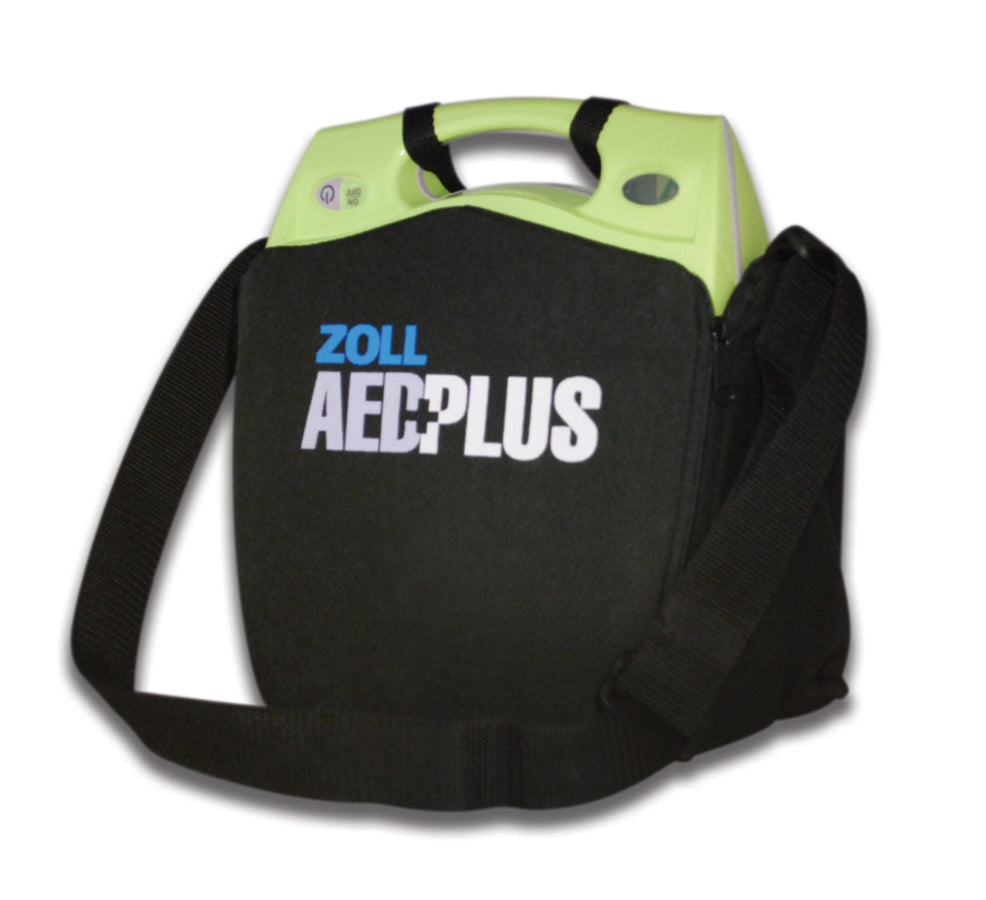

ZOLL AED Plus in ZOLL AED Plus Carry Case
ZOLL AED Plus back with AED Batteries
ZOLL AED Plus Rescue Video
ZOLL AED Plus Front
ZOLL AED Plus with open lid and ZOLL CPR D Padz
ZOLL AED Plus CPR Good Compressions
ZOLL AED Plus in ZOLL AED Plus Carry Case
ZOLL AED Plus back with AED Batteries
ZOLL AED Plus Rescue Video
ZOLL

ZOLL AED Plus

In stock
SKU: 8000-004007-01
$2,021.00
Style

ZOLL AED Plus Defibrillator

The ZOLL AED Plus defibrillator aids in performing high-quality CPR and providing a lifesaving shock, if needed, to the heart. By using the device promptly, you can help cave a life during a sudden cardiac arrest (SCA) emergency.

Not all AEDs are equal when it comes to helping a sudden cardiac arrest victim. ZOLL AEDs stand out with their unique ability to provide real-time feedback on compression rate and depth. Medical professionals highly recommend the ZOLL AED Plus defibrillator with Real CPR Help technology, which supports rescuers in delivering effective CPR through audio and visual feedback during the rescue process.

ZOLL AED Plus Product Features:

  • Real CPR Help provides real-time CPR feedback on the rate and depth of chest compressions
  • Audio prompts and visual icons complement the American Heart Association’s Chain of Survival
  • Easy-to-place, one-piece ZOLL CPR-D-padz electrodes with a 5-year shelf life
  • Fully automatic feature available — unit will deliver a shock on its own when a shockable heart rhythm is detected
  • Rugged design with an IP (ingress protection) rating of IP55 for dust and water
  • Can withstand conditions like extreme temperature, altitude, vibration, and shock
  • Off-the-shelf lithium batteries (Duracell 123a) with a 5-year battery life
  • Intelligent pediatric capability: Pedi-padz pediatric electrodes can be purchased separately for children up to 8 years old or weighing less than 55 pounds
  • Automatic self-testing helps ensure a state of readiness
  • Soft carry case for easy travel
  • 5-year warranty (7-year warranty with online registration)

Dimensions:

Size: (HxWxD) 5.25 in x 9.50 in x 11.50 in; 13.3 cm x 24.1 cm x 29.2 cm

Weight: 6.7 lbs; 3.1 kg

What’s included:

  • One-piece CPR-D PADZ Electrodes
  • Duracell Lithium Battery Set
  • Soft Carry Case
  • Data Review Software
  • Premium AED/CPR Responder® Pack
  • Physician’s Prescription
  • ZOLL AED Plus with a 7-Year Warranty

Defibrillator Specifications

Waveform: Rectilinear Biphasic

Defibrillator Charge Hold Time: 30 seconds

Energy Selection: Automatic preprogrammed selection (120J, 150J, 200J)

Patient Safety: All patient connections are electrically isolated

Charge Time: Less than 10 seconds with new batteries

Electrodes: ZOLL CPR-D-padz, pedi-padz® II, or stat-padz® II

Self-Test: Configurable automatic self-test from 1 to 7 days (default = every 7 days). Monthly full-energy test (200J).

Automatic Self-Test Checks:

• Battery capacity

• Electrode connection

• Electrocardiogram and charge/discharge circuits

• Microprocessor hardware and software

• CPR circuitry and CPR-D sensor

• Audio circuitry

CPR:

• Metronome Rate: Variable 60 to 100 CPM

• Depth: 3/4” to 3.5”; 1.9 to 8.9 cm

Defibrillation Advisory: Evaluates electrode connection and patient ECG to determine if defibrillation is required

Shockable Rhythms:

• Ventricular fibrillation with average amplitude >100 microvolts

• Wide complex ventricular tachycardia with rates greater than 150 BPM for adults and 200 BPM for pediatrics.

• For ECG Analysis Algorithm sensitivity and specificity, refer to AED Plus Administrator’s Guide.

Patient Impedance Measurement Range: 0 to 300 ohms

Defibrillator Design: Protected ECG Circuitry

Display Format: Optional LCD with moving bar

Size: 2.6” x 1.3”; 6.6 cm x 3.3 cm

Optional ECG Viewing Window: 2.6 seconds

Optional ECG Display Sweep Speed: 25 mm/sec; 1”/sec

Battery Capacity:

• Typical new (20°C) = 5 years (225 shocks) or 13 hours continuous monitoring

• End of life designated by Red X (typical remaining shocks = 9)


Data Recording and Storage:

• 50 minutes of ECG and CPR data

• If audio recording option is installed and enabled, 20 minutes of audio recording, ECG, and CPR data

• If audio recording is disabled, 7 hours of ECG and CPR data

PC Minimum Requirements for Configuration and Patient Data Recovery:

• Windows® 98, Windows® 2000, Windows® NT, Windows® XP, Windows® 7

• IBM-compatible PII with 16550 UART (or higher)

• 64MB RAM

• VGA monitor or better

• CD-ROM drive

• IrDA port

• 2MB disk space

Size (H x W x D): 5.25” x 9.50” x 11.50”; 13.3 cm x 24.1 cm x 29.2 cm

Weight: 6.7 lbs; 3.1 kg

Power: User-replaceable batteries. 10 Type 123A Photo Flash lithium manganese dioxide batteries

Device Classification: Class II and internally powered per EN60601-1

Design Standards: Meets applicable requirements of UL 2601, AAMI DF-39, IEC 601-2-4, EN60601-1, IEC60601-1-2

Environmental Specifications

Operating Temperature: 32° to 122°F; 0° to 50°C

Storage Temperature: -22° to 140°F; -30° to 60°C

Humidity: 10 to 95% relative humidity, non-condensing

Vibration: MIL Std. 810F, Min. Helicopter Test

Shock: IEC 68-2-27; 100G

Altitude: -300 to 15,000 ft.; -91 m to 4573 m

Particle and Water Ingress: IP-55
ZOLL AED Plus Fully Automatic Product Manuel
ZOLL AED Plus Semi-Automatic Product Manuel
ZOLL AED Plus Fully Automatic Operator’s Guide
ZOLL AED Plus Semi-Automatic Operator’s Guide

See the ZOLL AED Plus in Action
